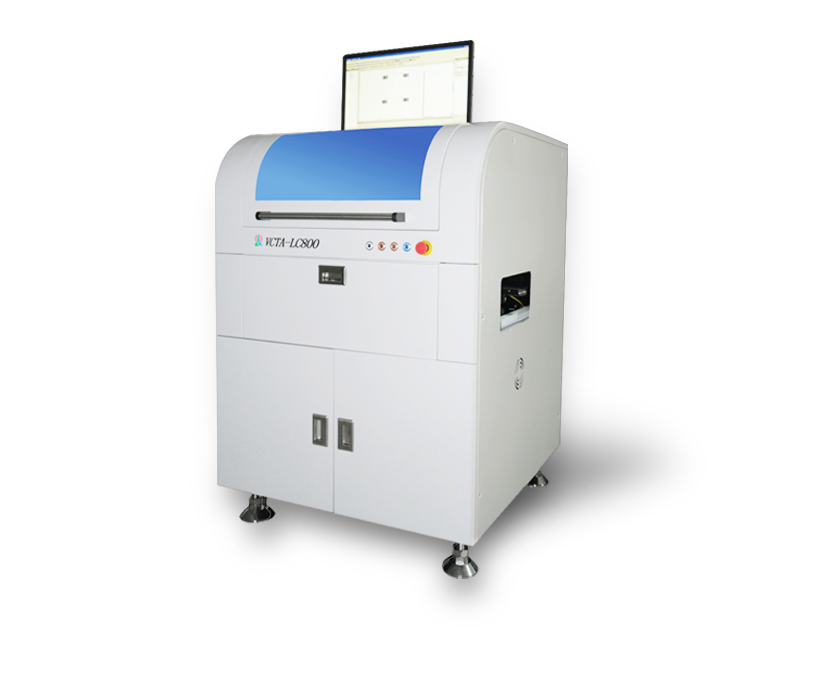

VCTA-LC800

工作流程

Intelligent high-speed CCD camera with TV industry lens
can accurate recognition and analysis of products characteristics
guarantee precision carving

Adjustable light source, suit for different background colors products

Precision orbit and control system

Precision orbit and control system，the track can automatically adjust the width（Max PCB size is: 330 x 250 mm， Thickness: 0.5 ～3 mm （special size can be customized)），double-side pneumatic control Pin，accurately product positioning and automatic open lock button，Thickness: 0.5 ～3 mm

Double guide screw for width adjusting, ensure orbit parallelism/ orbit width automatically adjus

Max PCB size is: 330 x 250 mm

Unique Z axis

Unique Z axis，Control by Japan imported servo motor and control precision guide screw。
Do great performance for different products freely adjusted for different height ，Making sure the precision of carving

Japan imported servo motor and control precision guide screw

X, Y axis adopt double sideways design
ensure the precision of long running condition

double sideways design

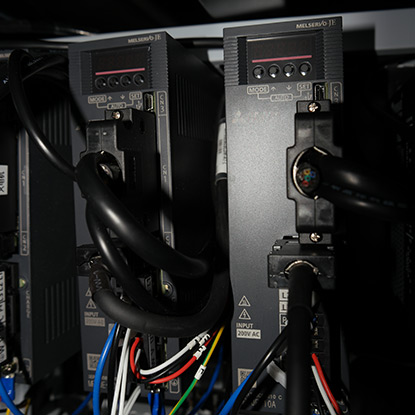

Imported PLC and servo control system
guarantying the precision of the control system

Japan imported servo motor and control precision guide screw

Inquiry online

0755-61519009/61519062

Types	Items	Specifications
Dimension（L×W×H）	1160×1040×1865 (including bottom and LCD)
Carve Sort	One dimensional code, qr code, Chinese, English, Number
To support the operating system	Windows XP, Win7, Win8
locate mode	Mechanical stop 、CCD + MARK position coordinates and adjustment
Online code reading function	CCD reading
PCB Size	Min.8080mm Max. 330250mm
PCB Tortuous Allowing	≤5mm
Repeatability Accuracy (GR&R)	＜10%
positional accuracy	±0.01mm
Working Method	Moving the LASER Head and fixing Board
Incoming recognition	To recognize the "reverse" and "wrong" board
Orbital Transfer Rate	50-3000mm/min
Response Speed	10ms
Capacity	1000 PCS/h for qr code signet (for example)

三維立體成像

三維立體成像是相位調制輪廓測量技術（PMP）基于結構
光柵正弦運動投影，離散相移獲取多幅被照射物光場圖像，
再根據多步相移法計算出相位分布，最后利用三角測量等方
法得到高精度的物體外形輪廓和體積測量結果。

真彩色的三維立體影像顯示。

快速編程

快速編程是支持RS274-D、RS274-X格式的Gerber文件及
支持dxf格式的CAD文件，導入文件后自動創建焊盤信息，
只需設置檢測參數即可完成編程。

全面詳盡的SPC分析系統

SPC統計分析是利用統計方法對過程中的各個階段進行過程控制，通過對測試信息的分析反饋，來促進前工序工藝的改良，以達到預防不良。操作者可以直觀的通過餅狀圖或者柱形圖等查看到測試信息的綜合統計。

統計信息可以輸出Html，Excel或Image等格式。
